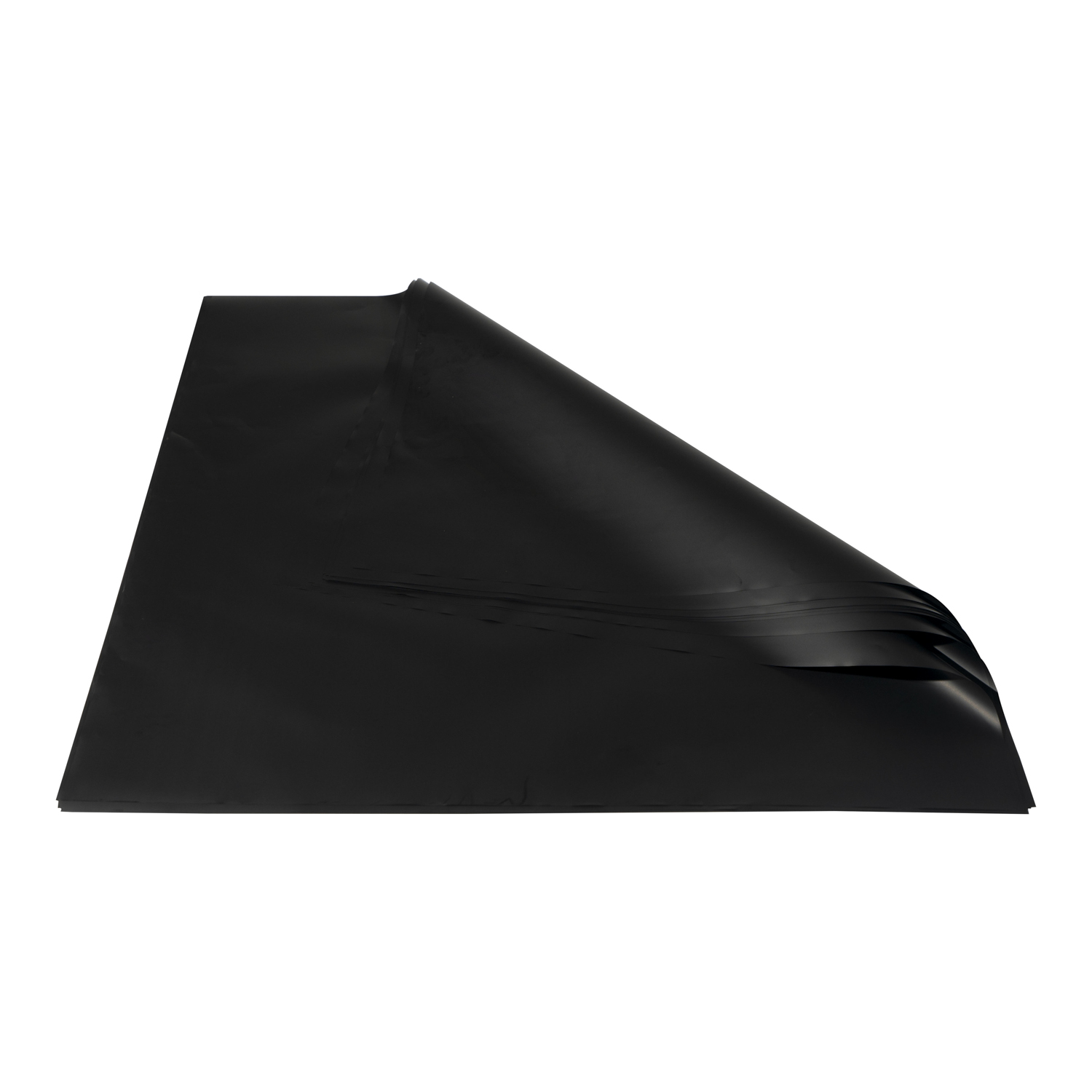

Black Conductive &Anti-static Film
The conductive film is made from conductive PE roll film as the raw material. It is processed through processes such as peeling and cutting to be produced. The finished product has a smooth and flat surface, is matte without particles and has no wrinkles, and can avoid scratching the packaged products.

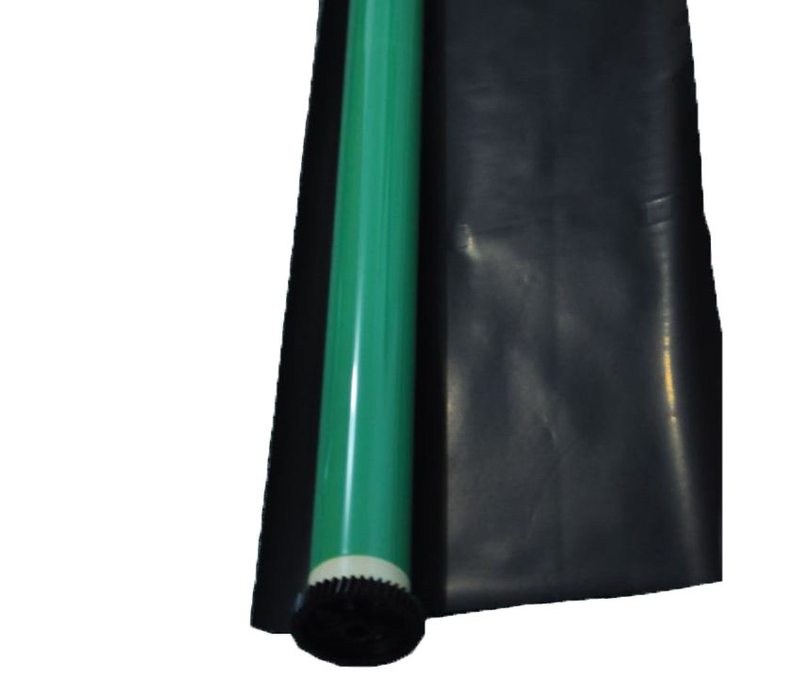

• General scenarios: Used for wrapping and isolating electrostatically sensitive products or products that require light. •shielding Key scenarios: OPC drum packaging, which can effectively protect the core of the OPC drum from electrostatic damage without scratching its outer surface
The main technical parameters:
Model | Item | General square resistance（Ω/Sq） | Thickness（μm） | Width（mm） | Length（mm） | Application |
JH5062 | Black conductive film | 1K~100K | 25~200 | 50~1250 | Customized | Explosion-proof, anti-static, light-blocking, electrostatic shielding packaging |
JH5062F | Black anti-static film | 100K~1G | 25~200 | 50~1250 | Customized | Explosion-proof, anti-static, light-blocking packaging |
JH5362F | Black light-blocking&anti-static film | D100M~100G | 25~200 | 50~1250 | Customized | Anti-static, light-blocking |
JH5462 | Black light-blocking film | 1T | 25~200 | 50~1250 | Customized | Light-blocking, UV-blocking |
Product Specification
Black Conductive &Anti-static Film
The conductive film is made from conductive PE roll film as the raw material. It is processed through processes such as peeling and cutting to be produced. The finished product has a smooth and flat surface, is matte without particles and has no wrinkles, and can avoid scratching the packaged products.
• General scenarios: Used for wrapping and isolating electrostatically sensitive products or products that require light. •shielding Key scenarios: OPC drum packaging, which can effectively protect the core of the OPC drum from electrostatic damage without scratching its outer surface
The main technical parameters:
Model | Item | General square resistance（Ω/Sq） | Thickness（μm） | Width（mm） | Length（mm） | Application |
JH5062 | Black conductive film | 1K~100K | 25~200 | 50~1250 | Customized | Explosion-proof, anti-static, light-blocking, electrostatic shielding packaging |
JH5062F | Black anti-static film | 100K~1G | 25~200 | 50~1250 | Customized | Explosion-proof, anti-static, light-blocking packaging |
JH5362F | Black light-blocking&anti-static film | D100M~100G | 25~200 | 50~1250 | Customized | Anti-static, light-blocking |
JH5462 | Black light-blocking film | 1T | 25~200 | 50~1250 | Customized | Light-blocking, UV-blocking |
