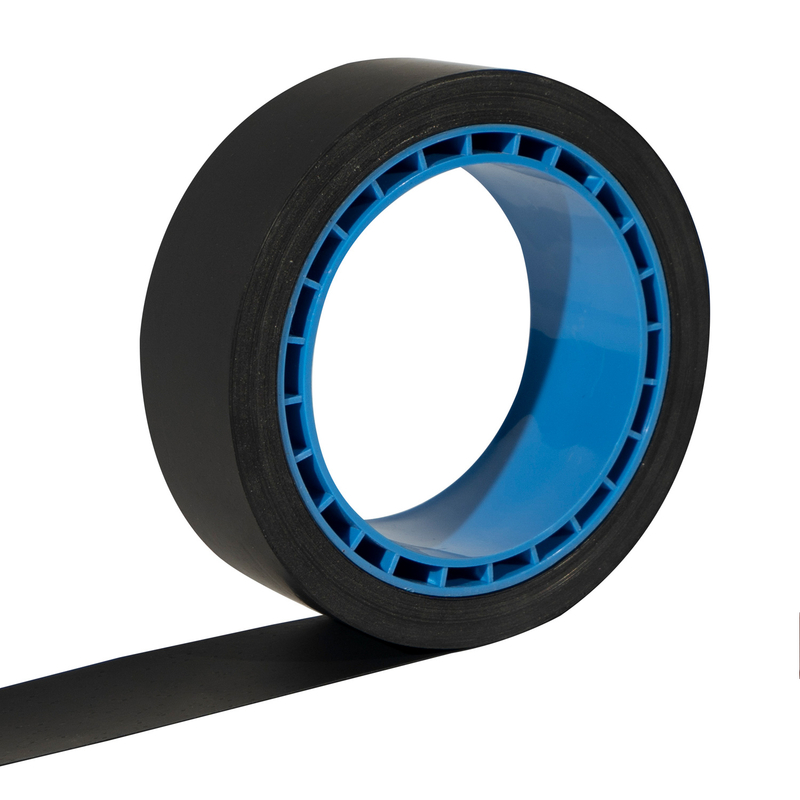

>>> Anti-static protective tape can also be called PE black conductive tape, black conductive roll
film, roll spacer protective film, black conductive coil film tape, strip chip card separator diaphragm.
The material of this protective belt can be any conductive polyethylene. This material has excellent electrostatic discharge and tensile strength. Can tightly protect the product. It has a very long shelf life. Because it is one-piece molded, there will be no problems such as powder or dust falling off, nor will it leave any color or other impurities on the protected items.
Material: PE material
Surface: Smooth and flat
Resistance: Uniform and stable
Size: Customized resistance, length and width
Material properties: Safe and soft
Expiry Date: Long life span
Model | Product | Surface resistance range （Ω/Sq） | Thickness （μm） | Width （mm） | Length （m） | Customized |
5065D1MT90W35R200 | ESD protection tape | 10K-1M | 90 | 35 | 200 | Yes |
5065D1MT90W35R400 | ESD protection tape | 10K-1M | 90 | 35 | 400 | Yes |
5065D1MT75W35R200 | ESD protection tape | 10K-1M | 75 | 35 | 200 | Yes |
5065D1MT75W35R500 | ESD protection tape | 10K-1M | 75 | 35 | 500 | Yes |
5065D1MT75W35R1000 | ESD protection tape | 10K-1M | 75 | 35 | 1000 | Yes |
5065D1MT50W35R500 | ESD protection tape | 10K-1M | 50 | 35 | 500 | Yes |
1. Protection for Bank Card and SIM Card Chip Production
HAOUGER's PE ESD protective tape (models such as 5065D1MT90W35R200, etc.) is used as a spacer tape in the production and storage processes of bank card and mobile phone SIM card chips. It is made of an exclusive formula black conductive polyethylene material, with a stable surface resistance range of 10K-1MΩ/Sq, which can quickly dissipate static electricity and prevent chips from being damaged by electrostatic discharge. At the same time, when the tape is tightly wrapped around the chips, it does not shed powder or produce yellow spot impurities, which can protect the cleanliness of the chip surface. It meets the large-scale production needs of strip chip packaging enterprises and card manufacturing factories, and is a core auxiliary material for physical isolation and electrostatic protection of electronic components.
2. Fixing and Protection in Electronic Component Manufacturing Processes
For example, when this tape is used on conveyor rolls in film manufacturing, the conductive carbon-filled base material can dissipate static electricity, preventing static electricity generated by friction during transportation from attracting dust, and thus avoiding dust from affecting the precision of electronic components (such as integrated circuits). Additionally, during the assembly of electronic components, this tape can fix components like chips and circuit boards. It not only serves as a physical spacer but also controls the electrostatic voltage within a safe range, reducing the risk of component failure due to static electricity. It is suitable for manufacturing environments with high temperatures (up to approximately 200°C) and high cleanliness.
Question 1: What are the core advantages of Haouger Technology's PE ESD protective tape that enable it to meet the protection needs of different scenarios such as bank card chips and OPC drums?
Answer: The core advantages are reflected in three aspects. Firstly, in terms of raw materials and performance, it uses an exclusive formula of black conductive polyethylene, which has both good electrostatic discharge performance (antistatic) and mechanical properties (wear resistance), making it suitable for electrostatically sensitive chips and easily scratched OPC drums. Secondly, in terms of quality and appearance, the surface is flat without wrinkles, matte without particles, does not shed powder or accumulate dust, and does not produce impurities, avoiding contamination or damage to the protected products. Thirdly, in terms of customization capability, it can be customized in terms of resistance, length, and width, which can meet the size and performance requirements of different scenarios such as chip packaging, card production, and OPC drum packaging.
Question 2: In addition to protecting bank card chips, what other scenarios can Haouger Technology's conductive products be applied to, and what core problems can the products solve in these scenarios?
Answer: They can also be applied to strip chip packaging and OPC drum packaging scenarios. In the strip chip packaging scenario, the product serves as a spacing and protective material, solving the problem of chip damage caused by static electricity or friction during the packaging process. In the OPC drum packaging scenario, the black conductive and anti-static film can solve two core problems: first, it protects the OPC drum core from static electricity damage through its electrostatic discharge performance; second, its flat and particle-free surface avoids scratching the outer surface of the OPC drum, ensuring its appearance and functionality remain intact.
Product Specification
Advantages of HAOUGERBlack Conductive Anti-static Film :
·Black Conductive Anti-static Film are suitable for coating or separating with electrostatically sensitive or light-shielding products，especially for OPC drum packaging. The film is flat without wrinkles, surface matte without particles, can well protect the drrum core from electrostatic damage, and will not scratch the outer surface of OPC drum.
·HAOUGER PE carbon conductive film can be customized with resistance, square resistance, width and length.
·HAOUGER has plenty of experience in making and using carbon conductive film in all fields , which can provide various solutions on conductive film application.
