• PU Conductive Carbon Film
product name：

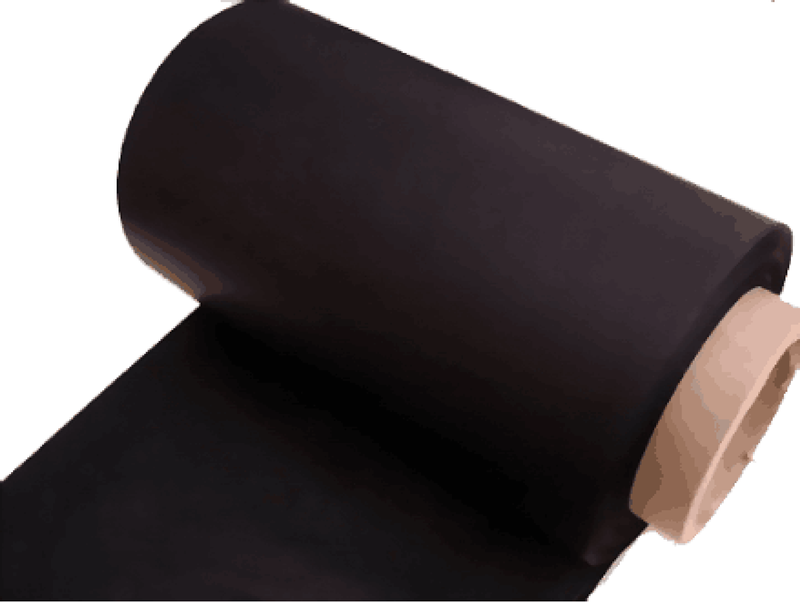

PU Conductive Carbon Film /Carbon Film/Black Conductive Plastic Film
Product number：JH8000
Product description:
PU conductive carbon film is made of polymer superconducting nano carbon black, graphene, additives and other mixed resins through a calendering process. The surface of the finished film is smooth and flat, the resistance is uniform and stable, and the double-sided conduction performance is excellent. The material is soft and resistant to bending. Most importantly, it’s acid and alkali proof, oil proof, heat proof, cold proof and oxidation proof, which gives the film a over 15 years life span .In addition, the special requirements of waterproof, rust-proof, fire-proof and ductility of the material can be realized by adjusting the ratio of the base material.
Application:

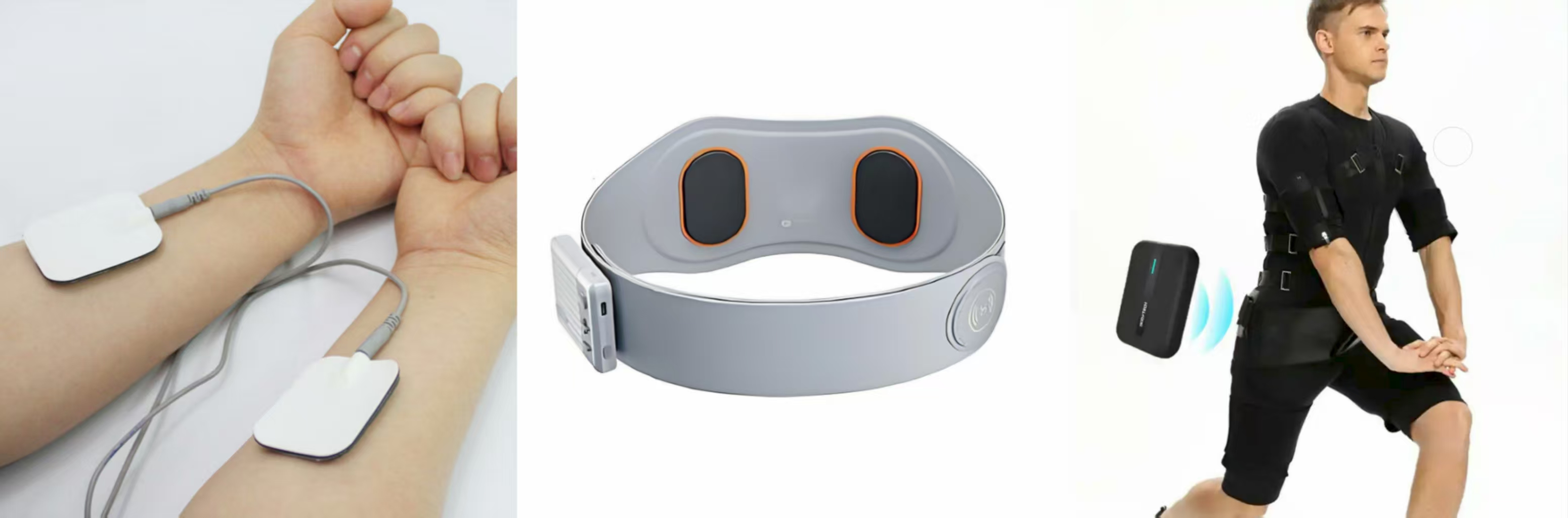

• Applied to all kinds of beauty, health care and other physiotherapy electrode products
• Used in all kinds of examination, treatment, monitoring medical electrode product.
• Used in all kinds of electrical appliances, cables, aerospace, petrochemical and other electromagnetic shielding products;
• Applied to patch electrodes, pressure-sensitive circuits and various flexible electrode products;
• Used in various low temperature electric heating products such as surface heating, heat preservation, heating and defogging.
Product Feature
·Graphene adding
·Smooth and flat surface
·Uniform and stable resistance
·Customized resistance, length and width
·Safe and soft material
·Long life span
Product Specification
General square resistance（Ω/□） | Thickness（μm） | Width（mm） | Length（m） | （℃） | Extreme temperature resistance（℃） |
3~10000 | 20~400 | 5~1400 | 50-500 | -40~120 | -50~150 |
The surface resistance can be reduced to 0.02Ω by surface coating graphene,superconducting carbon paste or silver paste.
Note: The carbon film is a pure resistance circuit, so its conversion efficiency is high. Except for a small part of the loss (2%), most of it (98%) is converted into heat energy. In addition, the heat generated by the carbon film mainly dissipates heat in the form of radiation, which is low-temperature radiation and has transmittance with a wavelength of 8.97 microns(Graphene emits far-infrared waves of 8-15 microns when heated, and the range of human body resonant waves is 3-15 microns. Carbon-carbon bonds, carbon-hydrogen bonds and oxygen-hydrogen bonds resonate under the action of far-infrared waves.). It is a kind of infrared rays that are beneficial to human health. It can be quickly absorbed by the human body, dilate capillaries, promote blood circulation and metabolism, enhance human immunity, which is very beneficial to health.
Graphene flexible surface heating application
The heat of carbon film is mainly emitted by radiation, which is low-temperature radiation and has transmittance. The wavelength is 8.97 microns (graphene heating emits 8-15 micron far-infrared waves, the range of human body resonance waves is 3-15 microns, and the carbon-carbon bonds, carbon-hydrogen bonds, oxygen-hydrogen bonds, etc. in the cell molecules of human tissue can resonate under the action of graphene far-infrared waves). It is an infrared ray that is beneficial to human health and is called "life light wave" by scientists. It can be quickly absorbed by the human body, dilate microvessels, promote blood circulation and metabolism, enhance human immunity, and is very beneficial to health.
Medical/physiotherapy flexible electrode material
The conductive film material is soft and conformable, free of harmful substances, and has passed the EU Rohs halogen directive. Different conductive effects can be achieved by adjusting different conductive material proportions.
It is used in medical, physical therapy, rehabilitation, massage, fitness patch electrodes and other products.
Detailed images of PU film under an electron microscope
The relevant production instruments for manufacturing PU film
Panoramic view
Place the release film platform
Winding machine
Advantages of HAOUGER Black Carbon Conductive Film:
·PU black carbon conductive film are widely applied to all kinds of beauty, health care and other physiotherapy electrode products.
·Roll Black carbon conductive film can be used for examination, treatment, monitoring medical electrode product.
·Double-sided Pu Black carbon conductive film can be used in various low temperature electric heating products such as surface heating, heat preservation, heating and defogging.
·HAOUGER PU black carbon conductive film can also be used in all kinds of electrical appliances, cables, aerospace, petrochemical and other electromagnetic shielding products.
·HAOUGER PU carbon conductive film can be customized with resistance, square resistance, width and length.
·HAOUGER has plenty of experience in making and using carbon conductive film in all fields , which can provide various solutions on conductive film applicatio
