Single-sided Carbon Black Carbon Conductive Film For Ekg

• Composite Conductive Film

product name：

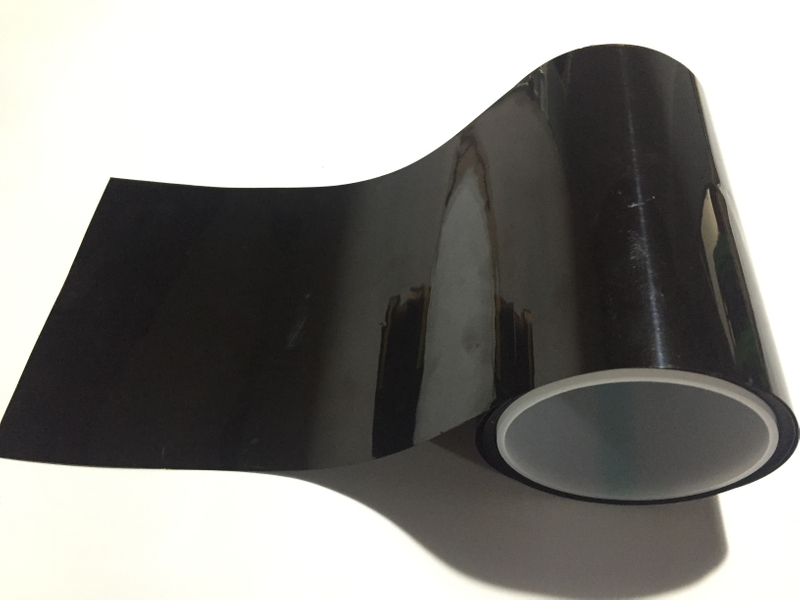

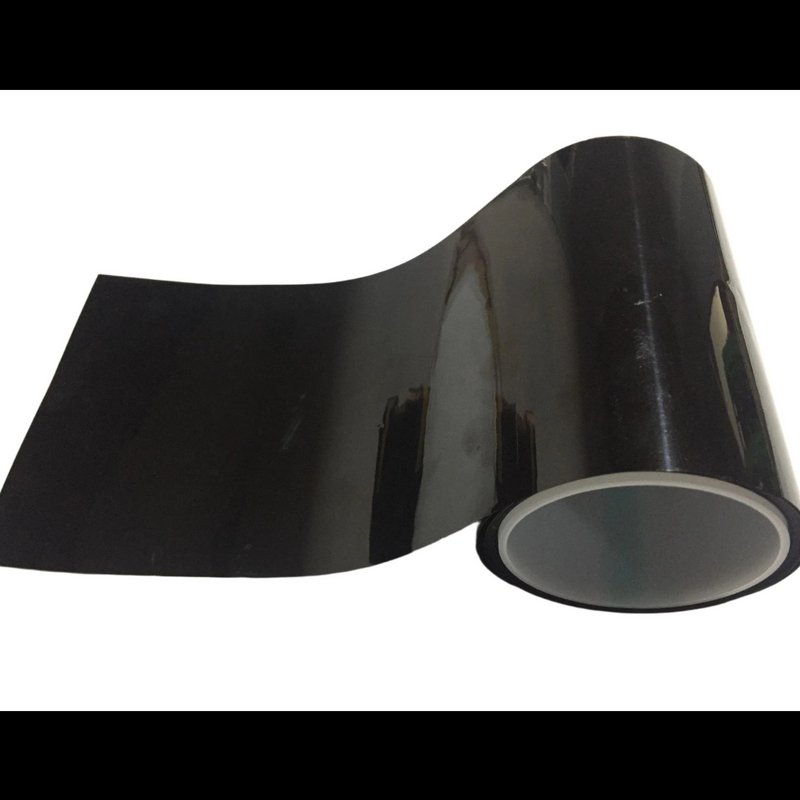

Composite Conductive Film/Carbon Film/Black Conductive Plastic Film

product model：JH6000

Product Description:

In order to make up for some performance deficiencies of PU conductive carbon film and PE conductive carbon film, we have developed composite conductive films, mainly including PET composite conductive carbon film, PI composite carbon film, fabric composite carbon film, etc., which are mainly used in physiotherapy Electrodes, electromagnetic shielding, electric heating and other products.

Application:

• Mainly used in physiotherapy Electrodes, electromagnetic shielding, electric heating and other products.

Product Feature

·Graphene adding

·Composite materials

·Smooth and flat surface

·Uniform and stable resistance

·Customized resistance, length and width

·Safe and soft material

·Long life span

·Single-sided conductive

Product Specification

Model	Item	Composite   Material	Material for Constructive Layer	Composition   Methods	General   square resistance（Ω/□）	Width（mm）	Length（m）
JH600T	PET   Composite Film	Polyethylene terephthalate film	PU+conductive   acetylene/graphene/silver	Coating/Heating/Gluing	0.02~600	5~1400	50-500
JH600I	PI Composite   Film	polyimide film	PU+conductive   acetylene/graphene/silver	Coating/Heating/Gluing	0.02~600	5~1400	50-500
JH600F	Fabric composite conductive film	All kinds of   Fabric (cloth)	PU+conductive   acetylene/graphene/silver	Heating/Gluing	0.02~600	5~1400	50-500
JH600X	Other   Materials	Other	PU+conductive   acetylene/graphene/silver	Coating/Heating/Gluing	0.02~600	5~1400	50-500

Graphene flexible surface heating application

The heat of carbon film is mainly emitted by radiation, which is low-temperature radiation and has transmittance. The wavelength is 8.97 microns (graphene heating emits 8-15 micron far-infrared waves, the range of human body resonance waves is 3-15 microns, and the carbon-carbon bonds, carbon-hydrogen bonds, oxygen-hydrogen bonds, etc. in the cell molecules of human tissue can resonate under the action of graphene far-infrared waves). It is an infrared ray that is beneficial to human health and is called "life light wave" by scientists. It can be quickly absorbed by the human body, dilate microvessels, promote blood circulation and metabolism, enhance human immunity, and is very beneficial to health.

Medical/physiotherapy flexible electrode material

The conductive film material is soft and conformable, free of harmful substances, and has passed the EU Rohs halogen directive. Different conductive effects can be achieved by adjusting different conductive material proportions.

It is used in medical, physical therapy, rehabilitation, massage, fitness patch electrodes and other products.

Energy battery electrodes

The core function of the PE separator is to physically isolate the positive and negative electrodes (to prevent short circuits), while allowing Li⁺ to freely shuttle through uniform micro-pores (with a pore size of 0.1-1μm), ensuring the charging and discharging efficiency.

Advantages of HAOUGER Black Carbon Conductive Film:

·PI black carbon conductive film are widely applied to all kinds of beauty, health care and other physiotherapy electrode products.

·Roll Black carbon conductive film can be used for examination, treatment, monitoring medical electrode product.

·Single-sided PI black carbon conductive film can be used in various low temperature electric heating products such as surface heating, heat preservation, heating and defogging.

·HAOUGER PI black carbon conductive film can also be used in all kinds of electrical appliances, cables, aerospace, petrochemical and other electromagnetic shielding products.

·HAOUGER PI carbon conductive film can be customized with resistance, square resistance, width and length.

·HAOUGER has plenty of experience in making and using carbon conductive film in all fields , which can provide various solutions on conductive film application.
