ESD Protective Tape (Spacer Tape) for Ribbon Chip Packaging

material: pe

anti-static

size:customized

Availability:

Quantity:



Inquire Add to Basket

Product Description

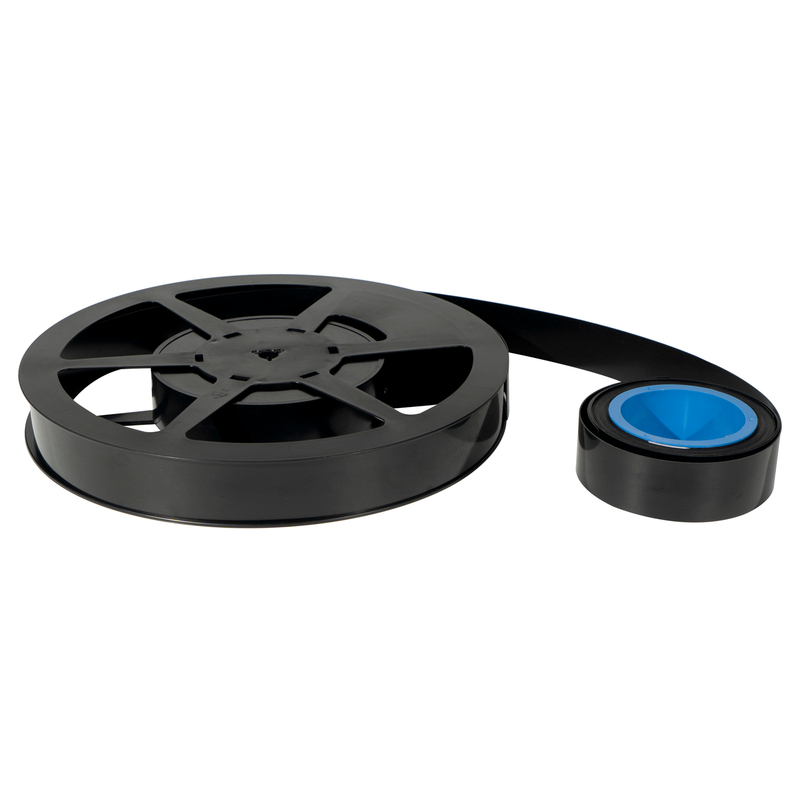

Anti-static protective tape

The anti-static protection tape is made of black conductive polyethylene material, which ensures its basic performance. It has excellent static discharge properties and good mechanical properties. The surface quality is excellent, smooth and flat. The resistance is stable and the material is safe and soft.

Application

Such products are widely used in strip chip packaging enterprises, as well as the use of such

chips to make bank cards, mobile phone communications SIM card factory

Product Feature

material: pe

resistance:10k-1M Ω/sq

width:35

thickness:customized

Model	Product	Surface resistance range （Ω/Sq）	Thickness （μm）	Width （mm）	Length （m）	Customized
5065D1MT90W35R200	ESD protection tape	10K-1M	90	35	200	Yes
5065D1MT90W35R400	ESD protection tape	10K-1M	90	35	400	Yes
5065D1MT75W35R200	ESD protection tape	10K-1M	75	35	200	Yes
5065D1MT75W35R500	ESD protection tape	10K-1M	75	35	500	Yes
5065D1MT75W35R1000	ESD protection tape	10K-1M	75	35	1000	Yes
5065D1MT50W35R500	ESD protection tape	10K-1M	50	35	500	Yes
