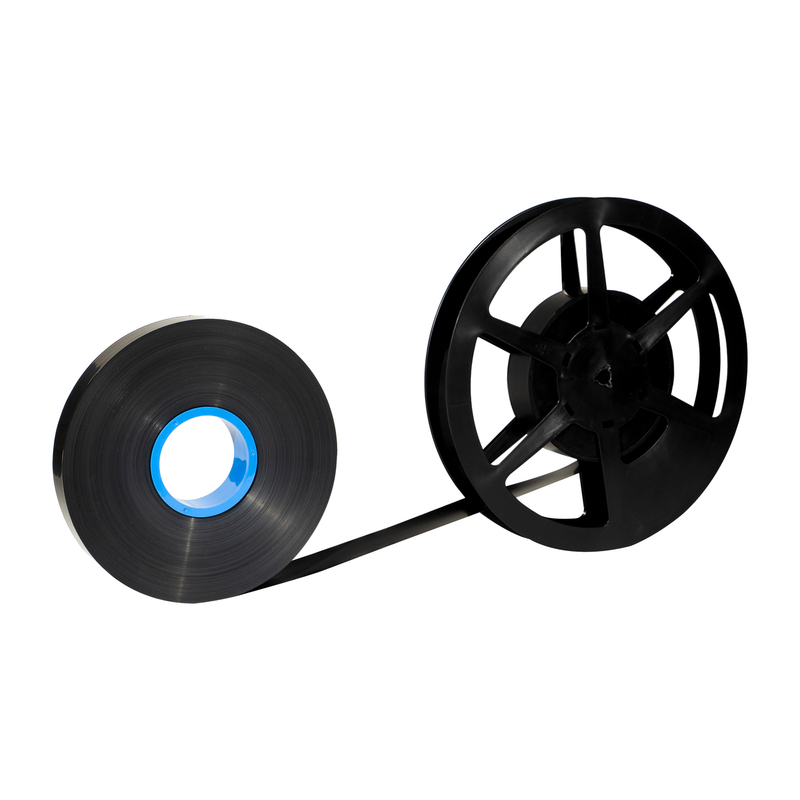

ESD Protective Tape (Spacer Tape) for Strip Chip Packaging

size:customized
Surfece resistance: 10^4-10^7 Ω/sq
Availability:
Quantity:

Anti-static protective tape


Product Name: ESD Protective Tape (Spacer Tape)

Product Aliases:PE black conductive tape, black conductive roll  film, roll spacer protective film, black conductive coil film tape, strip chip card separator diaphragm

Technology (HAOUGER) Core Raw Material: Uses the manufacturer's exclusive formula of black conductive polyethylene material


Product Characteristics

Performance:

It has excellent static discharge performance, effectively protecting sensitive electronic products.

It possesses outstanding mechanical properties, suitable for product winding and long-term storage requirements.

Quality Assurance:

After being tightly wound around the protected product, it will not lose powder or accumulate dust even after being stored for a long time.

It will not form yellow spots or other impurities on the product surface, avoiding product contamination.

Appearance and Texture:

The surface is smooth and flat, without wrinkles; matte texture, without particles.

Customization Attributes:

Supports customization of resistance, length, width, and sheet resistance to meet different application needs.


Product Feature

·PE material

·Smooth and flat surface

·Uniform and stable resistance

·Customized resistance, length and width

·Safe and soft material

·Long life span


Application scenario

Mainly applied in chip packaging enterprises, or in enterprises that produce mobile phone SIM cards and bank cards.


Model

Product

Surface resistance range

(Ω/Sq)


Thickness

(μm)


Width

(mm)


Length

(m)

Customized

5065D1MT90W35R200

ESD protection tape

10K-1M9035200Yes

5065D1MT90W35R400

ESD protection tape

10K-1M9035400Yes

5065D1MT75W35R200

ESD protection tape

10K-1M7535200Yes

5065D1MT75W35R500

ESD protection tape

10K-1M7535500Yes

5065D1MT75W35R1000

ESD protection tape

10K-1M75351000Yes

5065D1MT50W35R500

ESD protection tape

10K-1M5035500Yes
