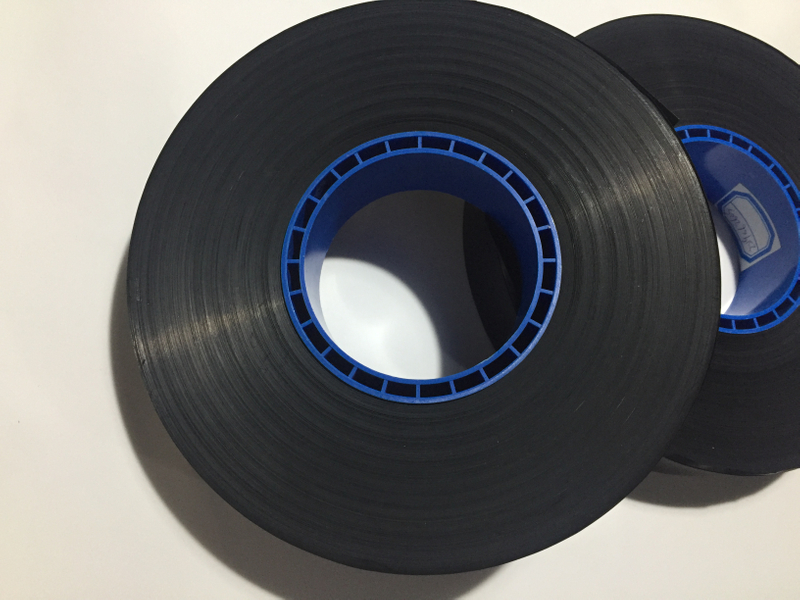

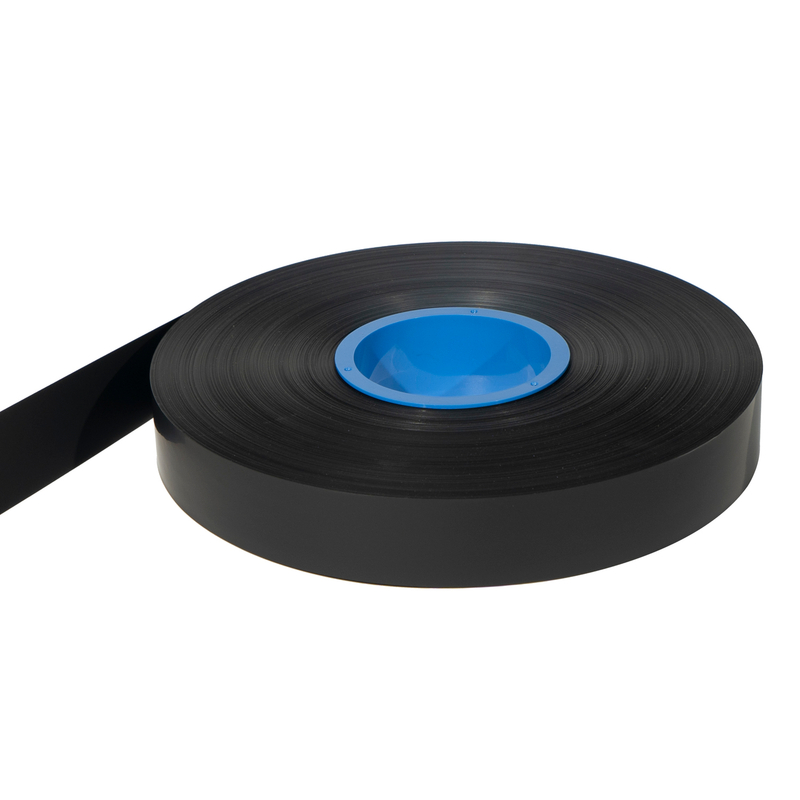

HAOUGER Technology's ESD Protection Tape (Spacer Tape), also known as PE black conductive tape, etc., is made from black conductive polyethylene with an exclusive formula. It has good electrostatic discharge and mechanical properties, with a flat surface, uniform and stable resistance, and can be customized. The thickness includes 50μm, 75μm, 90μm, etc. The length options are 200m, 400m, 500m, 1000m, etc. The width is mostly 35mm, and the surface resistance range is 10K-1M Ω/Sq. It is not only widely used in ribbon chip packaging and the manufacturing of bank cards and SIM cards, but also suitable for coating and separation of electrostatically sensitive or light-shielding products such as OPC drums. It can effectively protect products from electrostatic damage without generating impurities or scratching the surface.
resistance:customized
surface: smooth and flat
material: safe and soft
Model | Product | Surface resistance range （Ω/Sq） | Thickness （μm） | Width （mm） | Length （m） | Customized |
5065D1MT90W35R200 | ESD protection tape | 10K-1M | 90 | 35 | 200 | Yes |
5065D1MT90W35R400 | ESD protection tape | 10K-1M | 90 | 35 | 400 | Yes |
5065D1MT75W35R200 | ESD protection tape | 10K-1M | 75 | 35 | 200 | Yes |
5065D1MT75W35R500 | ESD protection tape | 10K-1M | 75 | 35 | 500 | Yes |
5065D1MT75W35R1000 | ESD protection tape | 10K-1M | 75 | 35 | 1000 | Yes |
5065D1MT50W35R500 | ESD protection tape | 10K-1M | 50 | 35 | 500 | Yes |
Product Specification
·HAOUGER has plenty of experience in making and using carbon conductive film in all fields , which can provide various solutions on conductive film application.
HAOUGER Technology's ESD Protection Tape (Spacer Tape), also known as PE black conductive tape, etc., is made from black conductive polyethylene with an exclusive formula. It has good electrostatic discharge and mechanical properties, with a flat surface, uniform and stable resistance, and can be customized. The thickness includes 50μm, 75μm, 90μm, etc. The length options are 200m, 400m, 500m, 1000m, etc. The width is mostly 35mm, and the surface resistance range is 10K-1M Ω/Sq. It is not only widely used in ribbon chip packaging and the manufacturing of bank cards and SIM cards, but also suitable for coating and separation of electrostatically sensitive or light-shielding products such as OPC drums. It can effectively protect products from electrostatic damage without generating impurities or scratching the surface.
resistance:customized
surface: smooth and flat
material: safe and soft
Model | Product | Surface resistance range （Ω/Sq） | Thickness （μm） | Width （mm） | Length （m） | Customized |
5065D1MT90W35R200 | ESD protection tape | 10K-1M | 90 | 35 | 200 | Yes |
5065D1MT90W35R400 | ESD protection tape | 10K-1M | 90 | 35 | 400 | Yes |
5065D1MT75W35R200 | ESD protection tape | 10K-1M | 75 | 35 | 200 | Yes |
5065D1MT75W35R500 | ESD protection tape | 10K-1M | 75 | 35 | 500 | Yes |
5065D1MT75W35R1000 | ESD protection tape | 10K-1M | 75 | 35 | 1000 | Yes |
5065D1MT50W35R500 | ESD protection tape | 10K-1M | 50 | 35 | 500 | Yes |
Product Specification
·HAOUGER has plenty of experience in making and using carbon conductive film in all fields , which can provide various solutions on conductive film application.
