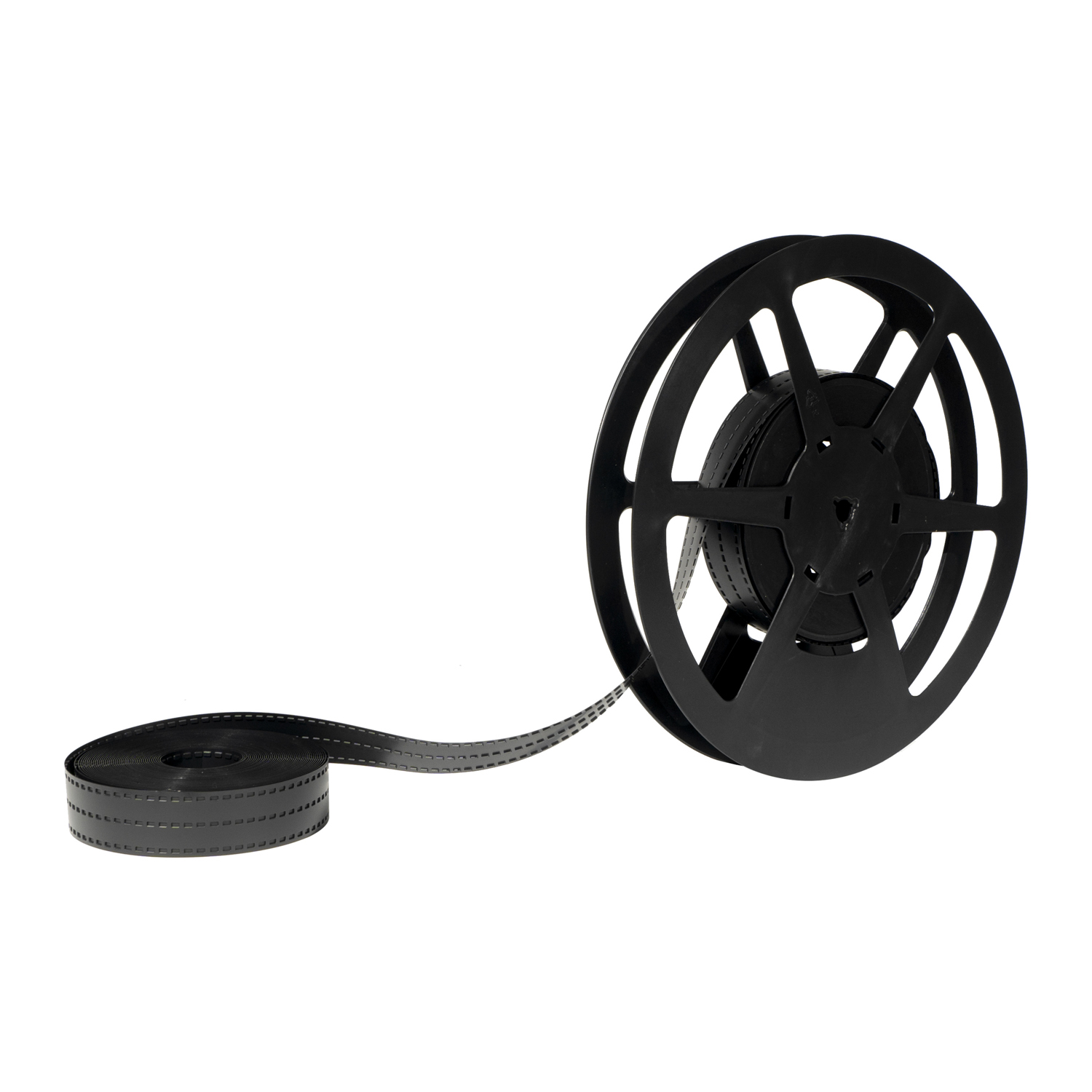

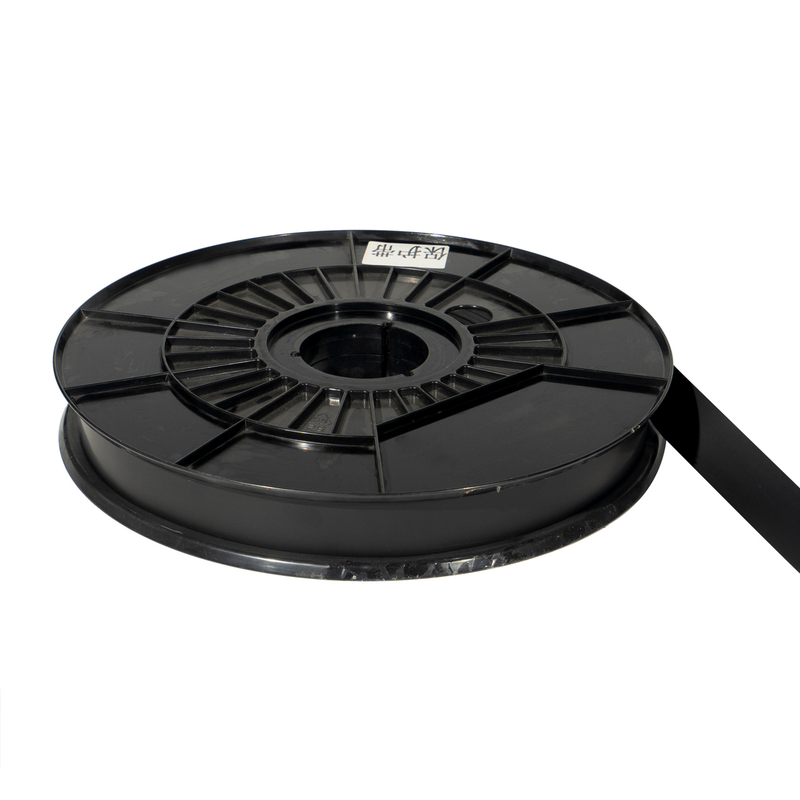

The main material of the anti-static PE protective tape is PE. Its main function is to prevent static electricity. And its surface is smooth, with uniform and stable resistance, and it will not cause powder shedding.
material：polyethylene
color:black
smooth surface
Tensile strength：high
Model | Product | Surface resistance range （Ω/Sq） | Thickness （μm） | Width （mm） | Length （m） | Customized |
5065D1MT90W35R200 | ESD protection tape | 10K-1M | 90 | 35 | 200 | Yes |
5065D1MT90W35R400 | ESD protection tape | 10K-1M | 90 | 35 | 400 | Yes |
5065D1MT75W35R200 | ESD protection tape | 10K-1M | 75 | 35 | 200 | Yes |
5065D1MT75W35R500 | ESD protection tape | 10K-1M | 75 | 35 | 500 | Yes |
5065D1MT75W35R1000 | ESD protection tape | 10K-1M | 75 | 35 | 1000 | Yes |
5065D1MT50W35R500 | ESD protection tape | 10K-1M | 50 | 35 | 500 | Yes |
Q1: what the advantage is of not allowing dust to fall off?
A1: The main reason is that the application industry mainly involves high-precision fields, such as SIM cards, etc. If dust falls, it may cause particle contamination to SIM cards and other components, thereby affecting their signal reception.
Q2: Is the tape usually for one-time use in SIM card production? Can it be reused?
A2: It is recommended to use it once and not to reuse it.
Reason:
Performance degradation: After the use of the tape, dust, grease or tiny impurities from the chip detachment may adhere to the surface. Reuse will affect the anti-static performance and may contaminate the new SIM card;
Physical damage: Repeated tearing will cause damage to the edges of the tape, a decrease in stickiness, and inability to ensure uniform intervals, which may cause the SIM card to stack unevenly;
Cost consideration: This tape has a relatively low unit price. Using it once can avoid an increase in product defect rate due to repeated use, and the overall cost is more favorable.
Shanghai Jinghou Electronic Technology Co., Ltd. was established in 2005. It specializes in researching conductive and anti-static products and has obtained over 20 patent technologies. Having one's own laboratory and being able to develop and customize products according to customer needs, thereby solving the customers' problems.
