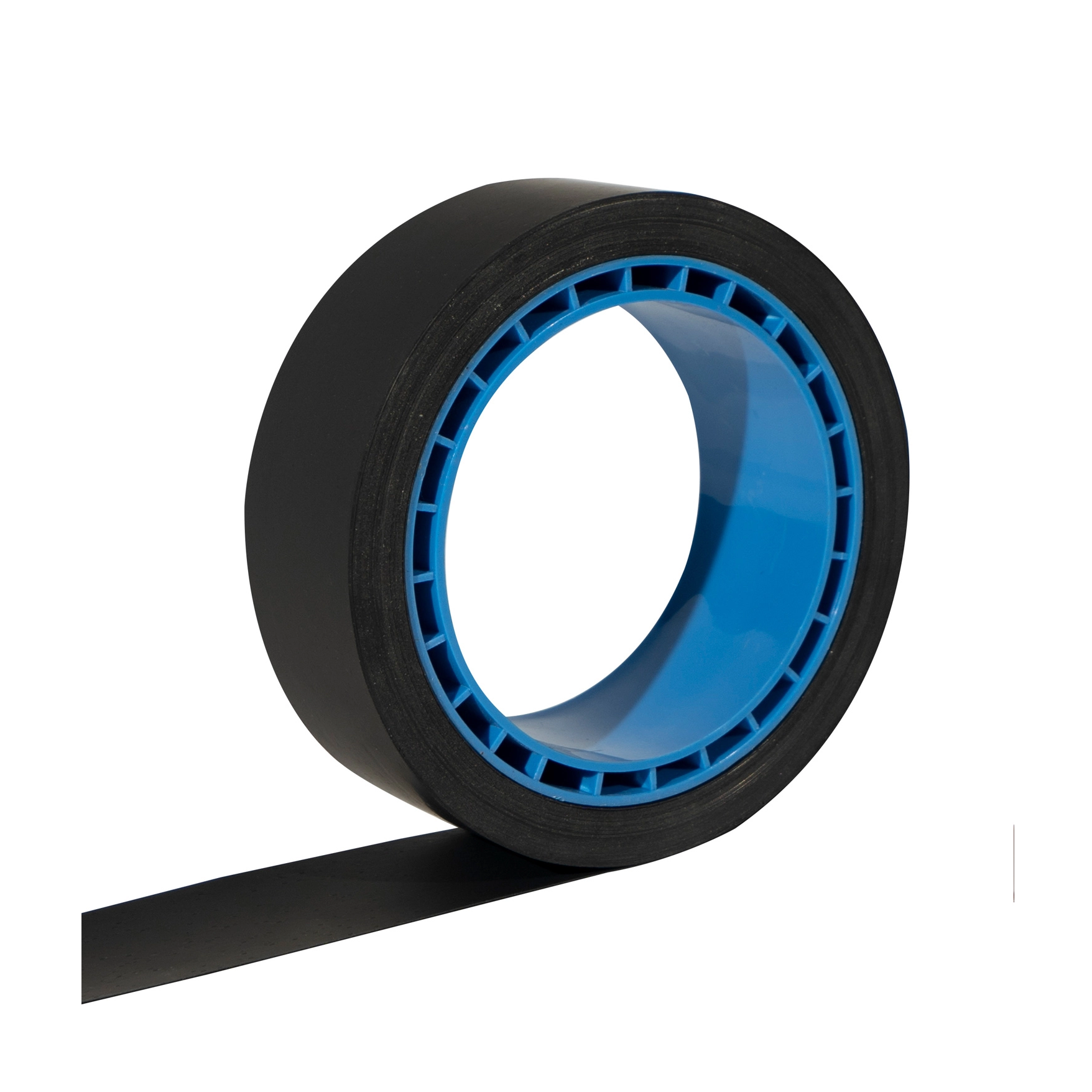

The material of the anti-static protection tape is mainly polyethylene, and its main functions are to conduct and dissipate static electricity and provide static protection. It can closely protect the product without generating dust particles and will not cause any contamination to the product.
material: pe
application: chip packaging
resistance:10K-1M
Long shelf life
Model | Product | Surface resistance range （Ω/Sq） | Thickness （μm） | Width （mm） | Length （m） | Customized |
5065D1MT90W35R200 | ESD protection tape | 10K-1M | 90 | 35 | 200 | Yes |
5065D1MT90W35R400 | ESD protection tape | 10K-1M | 90 | 35 | 400 | Yes |
5065D1MT75W35R200 | ESD protection tape | 10K-1M | 75 | 35 | 200 | Yes |
5065D1MT75W35R500 | ESD protection tape | 10K-1M | 75 | 35 | 500 | Yes |
5065D1MT75W35R1000 | ESD protection tape | 10K-1M | 75 | 35 | 1000 | Yes |
5065D1MT50W35R500 | ESD protection tape | 10K-1M | 50 | 35 | 500 | Yes |
Q: How long does the production cycle of the product take?
A: It will take approximately 10 days. However, according to the customer's requirements, we can arrange for expedited production.
Q:What information is required for custom products?
A:The thickness, resistance, size and other information need to be provided.
The packaging is done according to the customer's requirements, and the cardboard used is of a thicker material.
The material of the anti-static protection tape is mainly polyethylene, and its main functions are to conduct and dissipate static electricity and provide static protection. It can closely protect the product without generating dust particles and will not cause any contamination to the product.
material: pe
application: chip packaging
resistance:10K-1M
Long shelf life
Model | Product | Surface resistance range （Ω/Sq） | Thickness （μm） | Width （mm） | Length （m） | Customized |
5065D1MT90W35R200 | ESD protection tape | 10K-1M | 90 | 35 | 200 | Yes |
5065D1MT90W35R400 | ESD protection tape | 10K-1M | 90 | 35 | 400 | Yes |
5065D1MT75W35R200 | ESD protection tape | 10K-1M | 75 | 35 | 200 | Yes |
5065D1MT75W35R500 | ESD protection tape | 10K-1M | 75 | 35 | 500 | Yes |
5065D1MT75W35R1000 | ESD protection tape | 10K-1M | 75 | 35 | 1000 | Yes |
5065D1MT50W35R500 | ESD protection tape | 10K-1M | 50 | 35 | 500 | Yes |
Q: How long does the production cycle of the product take?
A: It will take approximately 10 days. However, according to the customer's requirements, we can arrange for expedited production.
Q:What information is required for custom products?
A:The thickness, resistance, size and other information need to be provided.
The packaging is done according to the customer's requirements, and the cardboard used is of a thicker material.
